Project Information
Establishment of the Strategic Livestock Breed Improvement Centre
Architectural & Laboratory Infrastructure

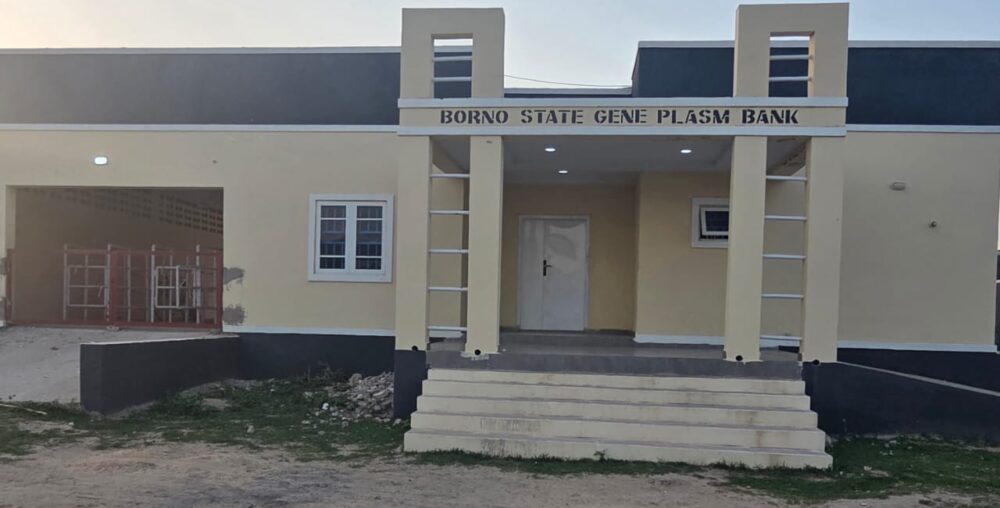

The structural facility was erected on a dedicated footprint within the Mohamet Lawan College of Agriculture, Maiduguri. The installation is engineered around strict biosecurity containment rules:
- Climate-Controlled Cryo-Room: Outfitted with an isolated HVAC system running redundant dust-filtration arrays to maintain a stable ambient temperature of (), protecting delicate molecular and cellular structures from ambient heat.
- Sanitized Surfacing: All walls are coated with clinical-grade, non-porous, anti-microbial epoxy finishes to eliminate biological contamination vectors. Floors feature continuous seamless chemical-resistant resin with integrated drain loops for routine washdowns.
- Semen Processing Bay: Designed with one-way workflow routing separating raw input extraction, microscopic diagnostic valuation, dilution-extension processing, and liquid nitrogen freezing lines.
High-Capacity Cryogenic Machinery & Laboratory Hardware
Liquid Nitrogen Storage Arrays: Installation of two (2) master liquid nitrogen (LN2) storage vessels running long-hold vacuum insulation, capable of holding internal temperatures at for up to 120 days without recharging, paired with five (5) mobile field transport canisters.
Automated Straw Processing & Sealing Suite: Deployment of a high-precision semi-automated filling and sealing machine configured explicitly for French mini-straws, running a production speed of up to 1,200 straws per hour with zero leak tolerances.
Computer-Assisted Semen Analysis (CASA) Suite: A high-resolution diagnostic microscope setup running advanced morphological evaluation software. The system automatically measures, charts, and stores spermatozoal progressive motility, concentration indices, and structural abnormalities, logging them directly into an on-site computer station.
Technical Breeding Protocols & Herd Management Workflows
- Semen Handling Standard Operating Procedures (SOPs): Established legal laboratory parameters governing the exact raw semen extraction times, maximum allowable time-to-dilution (under 15 minutes), and specific buffer extension ratios using standardized egg-yolk-citrate or soy-lecithin based extenders.
- Thermal Freezing Curves: Programmed exact incremental cooling sequences, lowering straw temperatures from down to at a strict rate of per minute using liquid nitrogen vapor phases before final sub-surface submersion to prevent cellular crystal breakdown.
